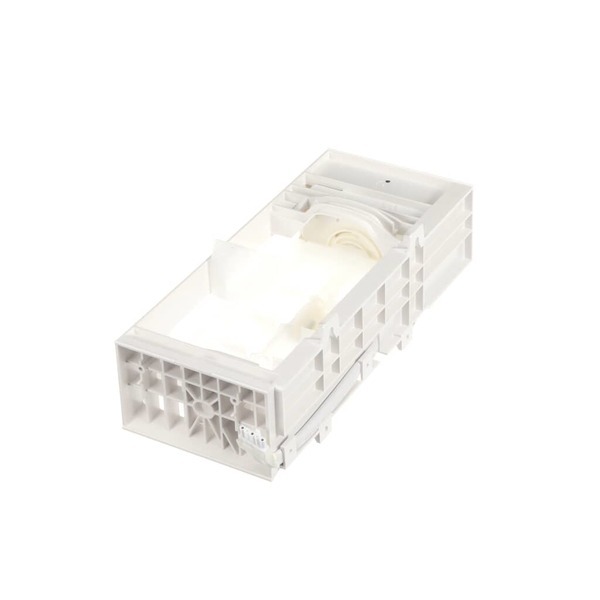

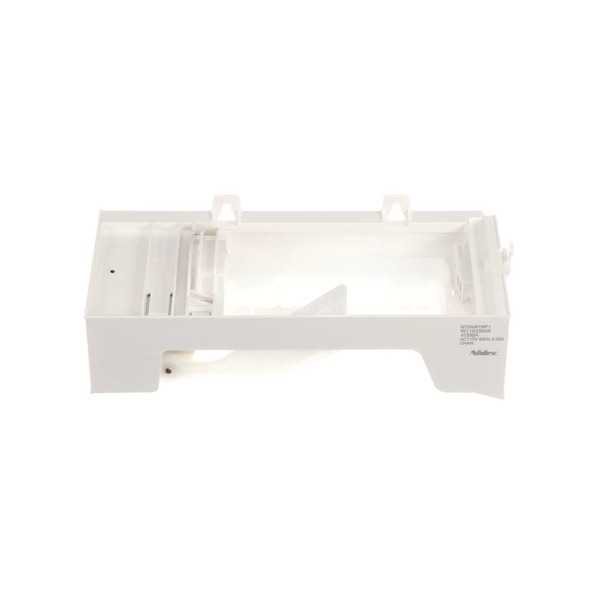

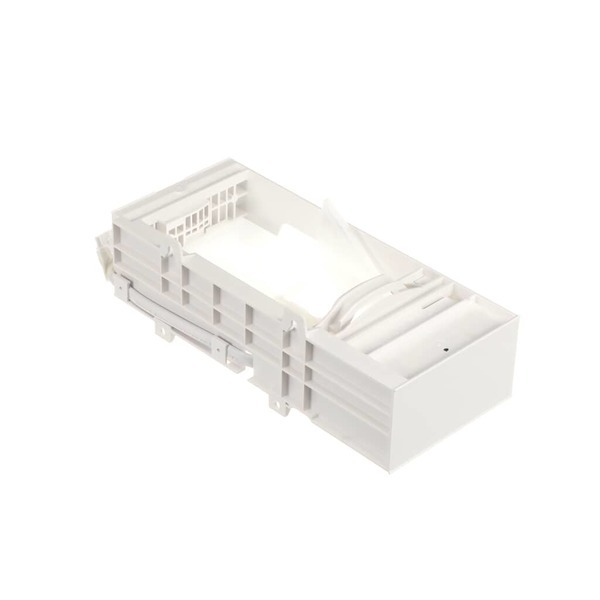

Ice Maker Assembly
Part Number: W11700250
Manufacturer: Whirlpool
Category: Refrigerator Component
This ice maker assembly is designed to produce ice cubes within a refrigerator. It automatically harvests ice to be dispensed directly into the storage bin, providing a consistent supply of ice for various needs.
Primary Function
This ice maker assembly is designed to produce ice cubes within a refrigerator. It automatically harvests ice to be dispensed directly into the storage bin, providing a consistent supply of ice for various needs.
Installation & Compatibility
Compatible Models: Fits various Whirlpool appliance models; please confirm this part is correct for your model before ordering.
Installation Difficulty: Medium — Requires technical skills; professional installation is recommended for optimal performance.
Tools Required: Screwdriver, wrench set
Additional Information
The Whirlpool Ice Maker Assembly is engineered to efficiently produce and store ice cubes within the freezer compartment of your refrigerator.
Ideal for household kitchens or small commercial settings. Before installing, ensure the appliance is disconnected from the power source.
Trust Whirlpool's quality manufacturing and performance in delivering reliable ice production throughout the typical lifespan of your appliance.
Price Match Guarantee
Found a lower price? We'll match it plus give you an additional 5% off!
Warranty & Shipping
2 Year Warranty
Full manufacturer warranty coverage
Free Shipping
On orders over $50
30-Day Returns
Easy return policy
Shipping Information
Exploded View
Search for a model
Enter your model number above to view exploded diagrams
Compatibility Information
This part is compatible with the following appliance models:
Ice Maker Assembly Fixes You Should Know
Common refrigerator issues and how to fix them effectively.
Common Problems
Refrigerator ice maker overflowing
Refrigerator ice is dirty
Refrigerator has frost or ice buildup
Refrigerator ice maker not working
Refrigerator is noisy or loud
Freezer is noisy or loud
Refrigerator leaking water
Refrigerator ice and water dispenser not working
Refrigerator ice dispenser not working
Freezer leaking water
Refrigerator ice maker overflowing
LikelySolutions
01 - Refrigerator Water Inlet Valve
The water inlet valve requires a minimum of 20 psi to shut off properly. If the water pressure is too low, the valve may not close fully once the power is shut off. As a result, the valve will leak water into the ice maker and cause the ice maker to overflow. Check the water pressure to determine if it is at least 20 psi. If the water pressure is sufficient, the water inlet valve is likely defective. The valve may not shut off all the way or may be stuck open, causing water to leak through the valve. If the water pressure is sufficient, but the ice maker is still overflowing, replace the water inlet valve.
02 - Obstructed Ice Maker
If there are food items stuck in or jammed around the ice maker, it may not cycle properly. The ice maker may get stuck in the middle of a cycle or overflow with ice or water. Inspect the ice maker and remove any items that may interfere with its operation.
03 - Low Water Pressure from House Supply
The water inlet valve, which supplies water to the refrigerator ice and water dispenser, requires sufficient water pressure to work properly. If the water pressure is too low, the valve may not close fully when the power is shut off. As a result, the valve will leak water into the ice maker, causing it to overflow. You can check the water flow at the kitchen faucet to help determine if the home's water pressure is sufficient or not.
04 - Refrigerator Ice Maker Assembly
One component of the ice maker assembly might be defective. Since many of the ice maker components are not sold separately, you may need to purchase and replace the entire ice maker assembly.
05 - Refrigerator Auger Motor
The auger motor spins the auger blade and pushes the ice through the dispenser chute. If the auger motor is burned out or defective, the ice won’t move forward and, potentially, the ice maker assembly can start to overflow. To determine if the auger motor is defective, pull out the ice bucket and turn the bucket auger by hand. If the auger turns freely, use a multimeter to test the auger motor for continuity. If the auger motor does not have continuity, or if the motor is getting power but won’t run, replace the auger motor.
06 - Refrigerator Clip
Some refrigerator ice makers are secured with clips. If one or more of the clips break, the ice maker may become dislodged and start to overflow. If the ice maker assembly is not sitting flush against the wall, purchase a new clip or clips to secure and seal.
07 - Refrigerator Adhesive
Some refrigerator ice makers are secured with adhesive. If the adhesive is no longer securing the ice maker, it may become dislodged and start to overflow. If the ice maker assembly is not sitting flush against the wall, consider using new adhesive to secure and seal.
08 - Refrigerator Ice Bucket Assembly
A cracked or damaged ice bucket assembly could result in ice overflowing into the freezer or refrigerator compartment or in a water leak. Inspect the ice bucket for any damage and replace the part if necessary.
